High Output Manufacturing Pet Dry Dog Food Production Line Extruder Floating Fish Feed Pellet Making Processing Machine
उत्पाद विवरण:
| Place of Origin: | China |
| ब्रांड नाम: | MIKIM |
| प्रमाणन: | CE |
| Model Number: | 65,70,75,85,95,120,136 |
भुगतान & नौवहन नियमों:
| Minimum Order Quantity: | 1 Set |
|---|---|
| मूल्य: | $3500.00 - 55000.00/ Set |
| Packaging Details: | packed by wooden export package or loading by container |
| Delivery Time: | 7-10 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 sets per month |
|
विस्तार जानकारी |
|||
| Heatiang Source: | electricity | Application: | Pet Food Production |
|---|---|---|---|
| The Color: | silver | Control System: | PLC Touch Screen |
| Products: | Dog food, cat food, birds food | ||
| प्रमुखता देना: | pet food extruder machine,floating fish feed pellet machine,high output dog food production line |
||
उत्पाद विवरण
| No. | Process | Machine | Description |
|---|---|---|---|
| 1 | Crushing | Crusher/Hammer mill | To crush the raw materials such as grains into flour/powder |
| 2 | Mixing | Mixer | To mix different flour materials together and evenly |

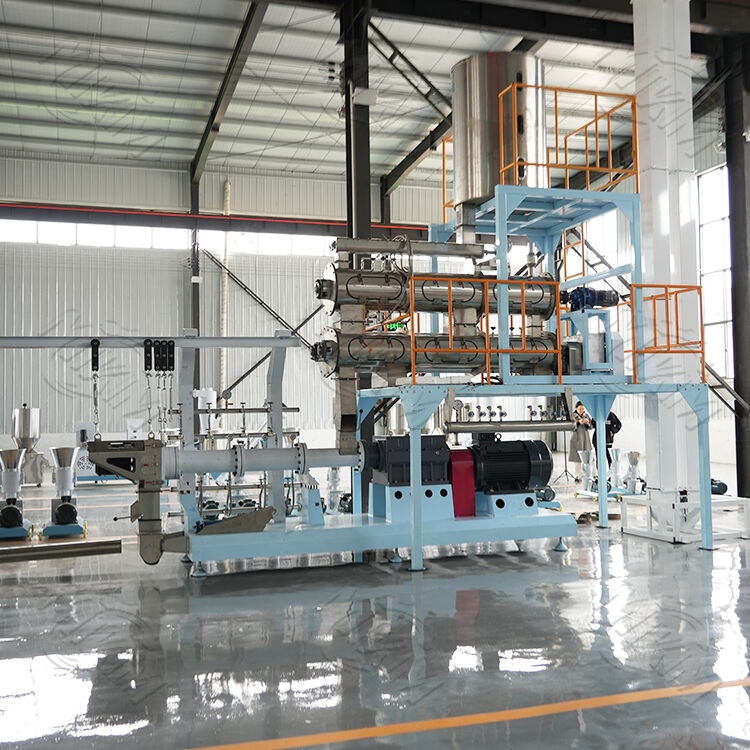

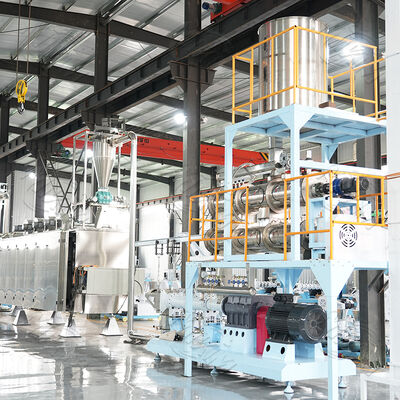

| 3 | Extruding and pelleting | Fish Feed Extruder | To make fish feed pellet, the material is processed by high temperature and pressure and pelletized into round pellets, suitable for feeding fish, we could produce both floating fish feed and sinking fish feed. |
| 4 | Drying | Dryer | To dry the fish feed pellets coming from the extruder |
| 5 | Cooling | Contraflow Cooler | To cool the fish feed pellets, the fish feed pellets could be stored for a long time. |

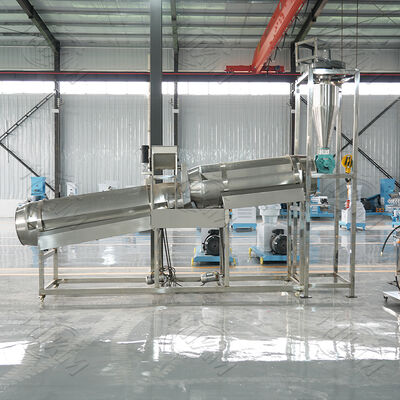

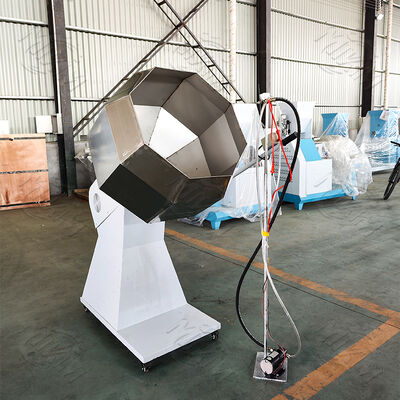

| 6 | Flavoring | Rotary flavoring machine | To seasoning the fish feed, spray oil and other liquid additives on the surface of fish feed pellets, make the feed more delicious. |
| 7 | Packaging | Automatic Packaging machine | To pack fish feed pellets into bags, easy for store, transportation and for sale in the market. |
Floating fish food processing line main processes:
Crushing process → Mixing process → Extruding process → Drying and oil spraying Process → Cooling process → Packing Process
The feed pellets are usually made of corn, brown rice, paddy, sorghum and soybean meal, fish meal, bone meal etc.
By receiving materials, our plant use granule cleaner and flour cleaner to clean the dust and other debris, then magnetic cylinder clean the irons and metal in the materials. After cleaned, materials be sent to next process.

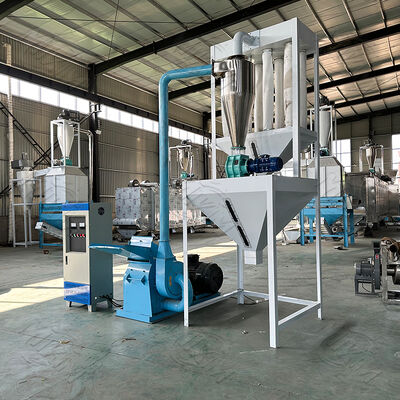

General-purpose products, stable performance, widely used in large and medium-sized feed, food processing enterprises of raw materials crushed.
- The machine uses direct drive, scientific and reasonable hammer arrangement, hammer sieve clearance, finished fineness uniform.
- Crushing chamber second strike technology.
- Selection of imported high-quality bearings, low operating temperature.
- A variety of screen size optional, quick open door mechanical and elastic pressure screen mechanism, for screen fast, easy operation and maintenance.
- NSK bearings, SKF bearing, tungsten carbide alloy spray hammer. Bearing temperature display instrument.
Dosing/Batching designs formulations according to the nutritional needs of different animals, using specific device to accurately weigh the various ingredients. Mixing is an operation in which various feed ingredients are metered and blended under external forces to form a uniform distribution.
This process adopts two batching scale and a number of batching bins, of which the micro ingredients are manually added equipped with check weigher. After batching of material ingredients is completed, then enter into the mixer for mixing, and finally the material is output through the conveyor and elevator.
- Selection of imported high-quality bearings, oil seals, to ensure that the machine running efficient, stable, low noise.
- Feeder made of stainless steel, by using frequency control motor to ensure that the quality of particles discharged.
- Single Conditioner or double conditioners can be choosed, made of stainless steel, to precook raw materials before extruding.
- The international advanced level of compensation type serpentine spring coupling, with a new structure, compact, safe, low noise, low fault performance.
- Die mold is made of wear-resistance alloy steel, gear box gear oil automatic cooling system.

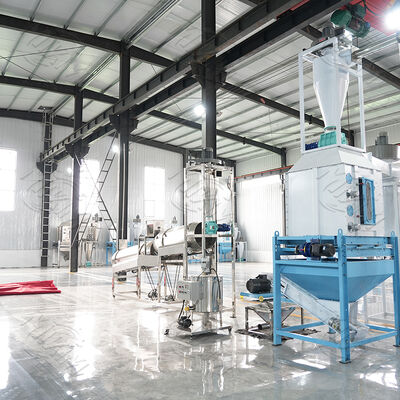

- The latest octagonal cooling box design, no cooling dead ends.
- The use of closed feeder feed, into the air area, cooling effect is significant.
- Discharging material evenly and evenly stacked in the cabin.
- The use of slide valve reciprocating discharge mechanism, the movement is smooth, reliable, with small residues.
- Low energy consumption, easy operation.
- After cooling the finished product temperature is not higher than room temperature+3 ºC ~ 5 ºC, suitable for the cooling of granular materials.
| Model (Electric) | Capacity (kg/h) | Motor Power | Cutting Blade Power | Cutting Power |
|---|---|---|---|---|
| 65 | 150-200 | 22KW | 1.5KW | 2.2KW |
| 70 | 250-300 | 30KW | 1.5KW | 2.2KW |
| 75 | 300-350 | 37KW | 1.5KW | 2.2KW |
| 85 | 600-800 | 75KW | 2.2KW | 3.0KW |
- We will give detailed introduction of the Wet type advanced design Fish food extruder making machine according to the client capacity requirement.
- Share any information about the Fish food extruder making machine that the clients need, like detaield pictures, video, etc.
- Design floating fish food extruding line for client.
- Help the clients to do suitable floating fish feed formulation.
- Give detailed instruction manual and video to help the client operate the Fish food extruder making machine.
